Transcatheter Aortic Valve Replacement (TAVR): Postdilatation to Reduce Paravalvular Regurgitation During TAVR with a Balloon-expandable Valve

Reviewer: Larry H Bernstein, MD, FCAP

and

Curator: Aviva Lev-Ari, PhD, RN

This report is one in a series on advances in cardiovascular surgery.  This report particularly focuses on the safety and efficacy of transcatheter aortic valve replacement (TAVR), a major study carried out at Columbia University Medical Center, involving reduction of paravalvular regurgitation post TAVI.

Circ Cardiovasc Interv. 2013 Feb;6(1):85-91. doi: 10.1161/CIRCINTERVENTIONS.112.971614. Epub 2013 Jan 22.

Efficacy and safety of postdilatation to reduce paravalvular regurgitation during balloon-expandable transcatheter aortic valve replacement.

Daneault BKoss EHahn RTKodali SWilliams MRGénéreux PParadis JMGeorge IReiss GRMoses JWSmith CRLeon MB.

Source

Columbia University Medical Center/New York-Presbyterian Hospital and the Cardiovascular Research Foundation, New York, NY 10032, USA.

Abstract

BACKGROUND:

Paravalvular regurgitation (PVR) is common after transcatheter aortic valve replacement (TAVR) and may be associated with adverse outcomes. Postdilatation (PD) has been proposed to treat PVR without being formally studied. We performed a study to evaluate the safety and efficacy of PD after balloon expandable TAVR.

METHODS AND RESULTS:

Consecutive cases of TAVR were reviewed for clinical outcomes. Procedural transesophageal echocardiography imaging was reviewed for a subgroup of consecutive patients. PVR areas seen on a short-axis view were measured immediately after deployment, after PD, and at the completion of the study. Stent dimensions measured using angiography and the Paieon’s C-THV system pre- and post-PD were compared. Between May 2007 and November 2011, 259 patients underwent TAVR at our institution. PD was performed in 106 patients (41%). These patients had larger annulus, lower cover-index; more often had transfemoral access and implantation of a 26 mm valve. There was a nonsignificant greater rate of cerebrovascular events in PD patients. There was no significant difference in major aortic injury and permanent pacemaker implantation rates between groups. TTE studies were reviewed in 58 patients (35 with PD and 23 without PD). PD patients had larger PVR areas immediately after deployment (40.3±17.1 versus 15.4±14.2 mm(2); P<0.0001). There was significant reduction in PVR area attributable to PD (21.7±9.3 mm(2); P<0.0001). Spontaneous regression of PVR was seen in both groups. PD increased stent dimensions.

CONCLUSIONS:

This study demonstrates the efficacy of PD at reducing PVR in patients with greater than mild PVR after balloon-expandable TAVR.

PMID: 23339841

Efficacy and Safety of Postdilatation to Reduce Paravalvular Regurgitation During Balloon-Expandable Transcatheter Aortic Valve Replacement

Daneault R, Koss E, Hahn RT, Kodali S, Williams MR, et al.
Circ Cardiovasc Interv. 2013;6:85-91. http://dx.doi.org/10.1161/circinterventions.112.971614

Transcatheter aortic valve replacement (TAVR) has emerged as a new alternative treatment for patients with severe aortic stenosis, who are at high risk or deemed inadequate candidates for conventional surgical aortic valve replacement. Paravalvular regurgitation (PVR) is common after transcatheter aortic valve replacement (TAVR) reported in 80% to 96% of TAVR cases Moreover, moderate and severe degrees of regurgitation are associated with worse clinical outcomes While the risk factors are known and include: smaller cover index, annulus eccentricity, and the degree and distribution of leaflet calcifications, postdilatation (PD) of balloon expandable valves after implantation, including transcatheter heart valve (THV) traumatic aorta injury, cerebrovascular embolus, and conduction block may outweigh the potential benefits from reduction in aortic regurgitation. Therefore, these investigators performed a study to evaluate the safety and efficacy of PD after balloon expandable TAVR.

What Is Known

• Significant paravalvular regurgitation after transcatheter aortic valve replacement is associatedwith increased mortality.
• Calcifications, undersized prosthesis, and malposition are causes of paravalvular regurgitation.

Study Design

Procedural and in-hospital outcomes for all consecutive patients treated between May 2007 and November 2011 with Edwards SAPIEN THV (Edwards Lifescience, Irvine, CA) as part of the PARTNER and PARTNER 2 trials were reviewed both prospectively and retrospectively. Information on PD was collected retrospectively from chart and imaging review for the period between 2007 and August 2010, and prospectively after August 2010. PD was performed in cases where PVR was qualitatively more than mild, by transesophageal echocardiography (TEE), immediately after THV implantation. There were 259 patients who underwent TAVR. PD was performed in 106 patients (41%). Procedural transesophageal echocardiography imaging was reviewed for a subgroup of consecutive patients. PVR areas seen on a short-axis view were measured immediately after deployment, after PD, and at the completion of the study. Stent dimensions measured using angiography and the Paieon’s C-THV system pre- and post-PD were compared, and TTE studies were reviewed in 58 patients (35 with PD and 23 without PD).

Endpoints

Neurological events were defined using valve academic research consortium definitions.14 Cover-index is defined as: 100×([THV diameter–TEE annulus diameter]/THV diameter).3 Clinical end points for the current analysis included 30-day mortality, in-hospital stroke or transient ischemic attack, procedural related major aortic injury (aortic dissection, aortic wall hematoma, or annulus/aortic rupture) and need for new permanent pacemaker during the index hospitalization. Echocardiographic end points included spontaneous reduction of PVR [difference between PVR1 and PVR3 in the non-PD group (PD−) and difference between PVR2 and PVR3 in the PD group (PD+)], and reduction of PVR attributable to PD
(PVR1−PVR2) in the PD+. Angiographic end points included additional expansion of IF, OF, and minimal diameters of stents after PD.

Results and Clinical Outcomes

No valve embolization occurred during PD. No patient required implantation of a second THV after PD. Multiple PD was performed in 4 cases. There was no statistically significant
difference between the 2 groups in the incidence of neurological events, although they were more frequent in patients with PD. Permanent pacemaker implantation during the index hospitalization was not significantly different between the 2 groups. Major aortic injuries were rare and occurred at a similar rate between both groups with no aortic annulus rupture in either group.

These (PD) patients had larger annulus, lower cover-index; more often had transfemoral access and implantation of a 26 mm valve. There was a nonsignificant greater rate of cerebrovascular events in PD patients. There was no significant difference in major aortic injury and permanent pacemaker implantation rates between groups.
PD patients had larger PVR areas immediately after deployment (40.3±17.1 versus 15.4±14.2 mm2; P<0.0001). There was significant reduction in PVR area attributable to PD (21.7±9.3 mm2; P<0.0001). Spontaneous regression of PVR was seen in both groups.
PD increased stent dimensions. There was a significant increase in the OF, IF, and minimal diameters after PD of 26 mm valves. The changes were not statistically significant for the 23 mm valves. There was a greater expansion in the IF and OF diameters compared with the minimal diameter.

Discussion

This study is the second that demonstrates the efficacy of PD at reducing postdeployment PVR in patients with greater than mild PVR after balloon-expandable TAVR. Moreover, judicious use of PD for greater than mild PVR is not associated with excess morbidity or mortality, although some concerns regarding cerebral embolism deserve comment. When it occurs, PVR is a significant cause of nonstructural prosthetic valve dysfunction. The anatomic positioning and resultant physiology of THV, however, are different from surgical valves. After surgical aortic valve replacement, most commonly PVR is attributable to infection, suture dehiscence, or fibrosis and calcification of the native annulus, resulting in inadequate contact or gaps between the sewing ring and annulus. Because THVs do not have a sewing ring traditional dehiscence cannot occur. For balloon-expandable THV, significant PVR most commonly results from incomplete prosthesis apposition to the native annulus.

What the Study Adds

• Additional postdilatation can reduce the magnitude of paravalvular regurgitation.
• Spontaneous regression of paravalvular regurgitation occurs within minutes after transcatheter aortic valve replacement.
• Postdilatation may be associated with increased risk of cerebrovascular events.

Other TAVR related articles published on this Open Access Online Scientific Journal include the following:

Lev-Ari, A. 2/12/2013 Clinical Trials on transcatheter aortic valve replacement (TAVR) to be conducted by American College of Cardiology and the Society of Thoracic Surgeons

https://pharmaceuticalintelligence.com/2013/02/12/american-college-of-cardiologys-and-the-society-of-thoracic-surgeons-entrance-into-clinical-trials-is-noteworthy-read-more-two-medical-societies-jump-into-clinical-trial-effort-for-tavr-tech-f/



Lev-Ari, A. 8/13/2012 Coronary Artery Disease – Medical Devices Solutions: From First-In-Man Stent Implantation, via Medical Ethical Dilemmas to Drug Eluting Stents https://pharmaceuticalintelligence.com/2012/08/13/coronary-artery-disease-medical-devices-solutions-from-first-in-man-stent-implantation-via-medical-ethical-dilemmas-to-drug-eluting-stents/



Lev-Ari, A. 7/18/2012 Percutaneous Endocardial Ablation of Scar-Related Ventricular Tachycardia

https://pharmaceuticalintelligence.com/2012/07/18/percutaneous-endocardial-ablation-of-scar-related-ventricular-tachycardia/



Lev-Ari, A. 6/22/2012 Competition in the Ecosystem of Medical Devices in Cardiac and Vascular Repair: Heart Valves, Stents, Catheterization Tools and Kits for Open Heart and Minimally Invasive Surgery (MIS)

https://pharmaceuticalintelligence.com/2012/06/22/competition-in-the-ecosystem-of-medical-devices-in-cardiac-and-vascular-repair-heart-valves-stents-catheterization-tools-and-kits-for-open-heart-and-minimally-invasive-surgery-mis/

Lev-Ari, A. 6/19/2012 Executive Compensation and Comparator Group Definition in the Cardiac and Vascular Medical Devices Sector: A Bright Future for Edwards Lifesciences Corporation in the Transcatheter Heart Valve Replacement Market

https://pharmaceuticalintelligence.com/2012/06/19/executive-compensation-and-comparator-group-definition-in-the-cardiac-and-vascular-medical-devices-sector-a-bright-future-for-edwards-lifesciences-corporation-in-the-transcatheter-heart-valve-replace/



Lev-Ari, A. 6/22/2012 Global Supplier Strategy for Market Penetration & Partnership Options (Niche Suppliers vs. National Leaders) in the Massachusetts Cardiology & Vascular Surgery Tools and Devices Market for Cardiac Operating Rooms and Angioplasty Suites

https://pharmaceuticalintelligence.com/2012/06/22/global-supplier-strategy-for-market-penetration-partnership-options-niche-suppliers-vs-national-leaders-in-the-massachusetts-cardiology-vascular-surgery-tools-and-devices-market-for-car/

 We reported on the following Medical Devices News:

Cardiac Surgery Theatre in China vs. in the US: Cardiac Repair Procedures, Medical Devices in Use, Technology in Hospitals, Surgeons’ Training and Cardiac Disease Severity”    https://pharmaceuticalintelligence.com/2013/01/08/cardiac-surgery-theatre-in-china-vs-in-the-us-cardiac-repair-procedures-medical-devices-in-use-technology-in-hospitals-surgeons-training-and-cardiac-disease-severity/

Acute Chest Pain/ER Admission: Three Emerging Alternatives to Angiography and PCI    https://pharmaceuticalintelligence.com/2013/03/10/acute-chest-painer-admission-three-emerging-alternatives-to-angiography-and-pci/

FDA Pending 510(k) for The Latest Cardiovascular Imaging Technology
https://pharmaceuticalintelligence.com/2013/01/28/fda-pending-510k-for-the-latest-cardiovascular-imaging-technology/

PCI Outcomes, Increased Ischemic Risk associated with Elevated Plasma Fibrinogen not Platelet Reactivity
https://pharmaceuticalintelligence.com/2013/01/10/pci-outcomes-increased-ischemic-risk-associated-with-elevated-plasma-fibrinogen-not-platelet-reactivity/

The ACUITY-PCI score: Will it Replace Four Established Risk Scores — TIMI, GRACE, SYNTAX, and Clinical SYNTAX
https://pharmaceuticalintelligence.com/2013/01/03/the-acuity-pci-score-will-it-replace-four-established-risk-scores-timi-grace-syntax-and-clinical-syntax/

Coronary artery disease in symptomatic patients referred for coronary angiography: Predicted by Serum Protein Profiles
https://pharmaceuticalintelligence.com/2012/12/29/coronary-artery-disease-in-symptomatic-patients-referred-for-coronary-angiography-predicted-by-serum-protein-profiles/

Ablation Devices Market to 2016 – Global Market Forecast and Trends Analysis by Technology, Devices & Applications
https://pharmaceuticalintelligence.com/2012/12/23/ablation-devices-market-to-2016-global-market-forecast-and-trends-analysis-by-technology-devices-applications/

Heart Renewal by pre-existing Cardiomyocytes: Source of New Heart Cell Growth Discovered
https://pharmaceuticalintelligence.com/2012/12/23/heart-renewal-by-pre-existing-cardiomyocytes-source-of-new-heart-cell-growth-discovered/

To Stent or Not? A Critical Decision
https://pharmaceuticalintelligence.com/2012/10/23/to-stent-or-not-a-critical-decision/

Transcatheter Aortic-Valve Replacement for Inoperable Severe Aortic Stenosis

https://pharmaceuticalintelligence.com/2012/09/03/transcatheter-aortic-valve-replacement-for-inoperable-severe-aortic-stenosis/

New Definition of MI Unveiled, Fractional Flow Reserve (FFR)CT for Tagging Ischemia

https://pharmaceuticalintelligence.com/2012/08/27/new-definition-of-mi-unveiled-fractional-flow-reserve-ffrct-for-tagging-ischemia/

New Drug-Eluting Stent Works Well in STEMI
https://pharmaceuticalintelligence.com/2012/08/22/new-drug-eluting-stent-works-well-in-stemi/

Expected New Trends in Cardiology and Cardiovascular Medical Devices
https://pharmaceuticalintelligence.com/2012/08/17/expected-new-trends-in-cardiology-and-cardiovascular-medical-devices/

English: This is a video clip from a living, b...

English: This is a video clip from a living, beating pig heart that was prepared in the laboratory as a working Langendorf preparation. The heart was arrested, connected to the perfusion system and restarted. The working fluid was oxygenated balanced saline solution. (Photo credit: Wikipedia)

English: Phonocardiograms from normal and abno...

English: Phonocardiograms from normal and abnormal heart sounds (Photo credit: Wikipedia)

Advertisements

Read Full Post »


No Early Symptoms – An Aortic Aneurysm Before It Ruptures – Is There A Way To Know If I Have it?

Curator: Aviva Lev-Ari, PhD, RN

I shadowed Dr. Cambria in the Operating Room at MGH in January 2005 while he performed Carotid Endarterectomy following Aortic Valve Replacement performed by Dr. Jennifer D. Walker  in a sequence, first the Valve replacement, then the Endarterectomy.

Aneurysm

Published on Thursday, 15 November 2012 | Print | Email
This word has a Greek origin from the terms [aneurusma], composed of [ana] meaning “complete or throughout”, and [eurus] meaning “wide”, a “complete widening or dilation”. It is used to refer to the dilation of an artery. Aneurysms can be formed in any artery, although they have some preferred sites. The most common aneurysms are found in the aorta, arterial circle of Willis, the root of the cerebral arteries, and internal carotid arteries.Biomechanical studies suggest that once an aneurysm forms it will generally progress in its dilation until aneurysmal rupture. Because of turbulent flow within the aneurysm large clots are usually formed, which in turn can cause emboli.The image shows an excised infrarenal aortic abdominal aneurysm (AAA). The two common iliac arteries can be seen. If you click on the image you will be able to see the same aneurysm opened through its posterior wall and the clot that was contained inside.Photography by D.M.Klein  Abdominal Aortic Aneurysm

http://clinanat.com/mtd/153-aneurysm

On 6/11/2013, Efrain Miranda, Ph.D. commented on this article, as follows:

It is true that abdominal aortic aneurysms (AAA) are mostly asymptomatic, until they rupture. By luck, some are identified. An example was a AAA found in Albert Einstein by Dr. Nissen when Einstein went for abdominal surgery for something completely unrelated! In my experience, I have found many AAA’s in individuals who had a totally different cause of death.

Dr. Richard Cambria describes an Aortic Aneurysm and recalls the numerous risk factors associated with the condition.

VIEW VIDEO

http://www.empowher.com/aortic-aneurysm/content/there-are-no-early-symptoms-there-way-know-if-i-have-aortic-aneurysm-it-rupt

By Dr. Richard Cambria Expert April 12, 2011 – 10:08am



Dr. Cambria:
An aortic aneurysm can be most simply thoughts of as a weakening or ballooning of the aorta which is the body’s major and largest blood vessel. That’s important because this ballooning or weakening can eventually lead to the aneurysm bursting, which is usually a fatal event.

Aneurysms have been referred to as the ‘silent killer’ because in most cases these aortic aneurysms cause no symptoms or problems prior to bursting. Most aortic aneurysms occur in older patients, but there are a clearly defined set of risk factors which makes certain patients at higher risk of developing aortic aneurysms. These include, most importantly, a family history of aortic aneurysm disease, and by family history I mean, if your mother or father or a brother or sister had an aortic aneurysm, you are clearly at increased risk of developing an aneurysm.

20% of the patients that we treat for aortic aneurysms have a positive family history of aneurysm disease. You are also at higher risk for developing an aortic aneurysm if you are female, if you have a history of high blood pressure, if you have been a cigarette smoker, and if you have chronic obstructive pulmonary disease or emphysema, which is in turn related to long-term cigarette smoking.

If you are at risk for developing an aortic aneurysm there are simple diagnostic x-ray studies such as ultrasounds and CAT scans to accurately diagnose number one, whether or not an aneurysm is present, and more importantly, if it is present, to measure just how large it is because that’s the single most important factor in determining whether or not your aneurysm needs to be treated.

It’s important to detect and monitor aortic aneurysms before they reach the stage of bursting because treatment is then usually successful with an expected excellent recovery. Treatment of aortic aneurysms today is very effective and involves replacing the aneurysm with an artificial blood vessel.

There are a variety of different surgical treatments, some of them including minimally invasive operations known as stent grafts, which are applied today in many patients.

Mass General has been a leader in the northeast in the successful management of aortic aneurysms. More than a decade ago, we formed the Mass General Thoracic Aortic Center, which is a team-approach of vascular surgeons, cardiac or heart surgeons, and cardiologists to effectively manage thoracic aneurysms which are often the most challenging and clinically complex to treat.

About Dr. Richard Paul Cambria, M.D.:
Richard P. Cambria, M.D. is Professor of Surgery at Harvard Medical School and Chief, Division of Vascular/Endovascular Surgery at Massachusetts General Hospital. Dr. Cambria received his medical degree from the College of Physicians and Surgeons, Columbia University, in 1977. He trained in general and vascular surgery at Massachusetts General Hospital.

http://www.empowher.com/aortic-aneurysm/content/there-are-no-early-symptoms-there-way-know-if-i-have-aortic-aneurysm-it-rupt

Education & Awards

Dr. Cambria graduated from Columbia University, New York. He has 15 awards.

Awards
One of America’s Leading Experts on:
Abdominal Aortic Aneurysm
Aortic Aneurysm
Aortic Diseases
Aortic Rupture
Arterial Occlusive Diseases
Blood Vessel Prosthesis Implantation
Carotid Endarterectomy
Carotid Stenosis
Kidney Failure
Mesenteric Vascular Occlusion
Spinal Cord Ischemia
Thoracic Aortic Aneurysm
Vascular Surgical Procedures
Castle Connolly America’s Top Doctors® (2002 – 2012)
Top Ten Doctors (2012)
Vascular Surgery, Downtown, Boston, MA

http://www.vitals.com/doctors/Dr_Richard_Cambria.html#ixzz2VqxwIwMK

Publications & Research

Dr. Cambria has contributed to 164 publications.
Title Giant Cell Aortitis of the Ascending Aorta Without Signs or Symptoms of Systemic Vasculitis is Associated with Elevated Risk of Distal Aortic Events.
Date February 2012
Journal Arthritis and Rheumatism
Title Long-term Outcomes of Patients Undergoing Endovascular Infrainguinal Interventions with Single-vessel Peroneal Artery Runoff.
Date May 2011
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Management of Diseases of the Descending Thoracic Aorta in the Endovascular Era: a Medicare Population Study.
Date October 2010
Journal Annals of Surgery
Excerpt Read excerpt

Title The Effects of Systemic Hypothermia on a Murine Model of Thoracic Aortic Ischemia Reperfusion.
Date August 2010
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Long-term Outcomes of Diabetic Patients Undergoing Endovascular Infrainguinal Interventions.
Date August 2010
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Preoperative Variables Predict Persistent Type 2 Endoleak After Endovascular Aneurysm Repair.
Date August 2010
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Surgical Management of Descending Thoracic Aortic Disease: Open and Endovascular Approaches: a Scientific Statement from the American Heart Association.
Date August 2010
Journal Circulation
Title Balloon Expandable Stents Facilitate Right Renal Artery Reconstruction During Complex Open Aortic Aneurysm Repair.
Date March 2010
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Preoperative Functional Status Predicts Perioperative Outcomes After Infrainguinal Bypass Surgery.
Date March 2010
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Intermediate-term Outcomes of Endovascular Treatment for Symptomatic Chronic Mesenteric Ischemia.
Date February 2010
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title A Multicenter Clinical Trial of Endovascular Stent Graft Repair of Acute Catastrophes of the Descending Thoracic Aorta.
Date December 2009
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Effect of Pj34 on Spinal Cord Tissue Viability and Gene Expression in a Murine Model of Thoracic Aortic Reperfusion Injury.
Date December 2009
Journal Vascular and Endovascular Surgery
Excerpt Read excerpt

Title Secondary Intervention After Endovascular Abdominal Aortic Aneurysm Repair.
Date October 2009
Journal Annals of Surgery
Excerpt Read excerpt

Title Aortic Remodeling After Endovascular Repair of Acute Complicated Type B Aortic Dissection.
Date September 2009
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Significant Perioperative Morbidity Accompanies Contemporary Infrainguinal Bypass Surgery: an Nsqip Report.
Date September 2009
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Pj34, a Poly-adp-ribose Polymerase Inhibitor, Modulates Visceral Mitochondrial Activity and Cd14 Expression Following Thoracic Aortic Ischemia-reperfusion.
Date August 2009
Journal American Journal of Surgery
Excerpt Read excerpt

Title Thoracoabdominal Aneurysm Repair: Hybrid Versus Open Repair.
Date July 2009
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Successful Use of Bivalirudin for Combined Carotid Endarterectomy and Coronary Revascularization with the Use of Cardiopulmonary Bypass in a Patient with an Elevated Heparin-platelet Factor 4 Antibody Titer.
Date April 2009
Journal Anesthesia and Analgesia
Excerpt Read excerpt

Title Atherosclerotic Peripheral Vascular Disease Symposium Ii: Controversies in Carotid Artery Revascularization.
Date January 2009
Journal Circulation
Title Functional Outcome After Thoracoabdominal Aneurysm Repair.
Date December 2008
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Outcomes Following Endovascular Abdominal Aortic Aneurysm Repair (evar): an Anatomic and Device-specific Analysis.
Date August 2008
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Zenith Abdominal Aortic Aneurysm Endovascular Graft.
Date August 2008
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Spinal Cord Complications After Thoracic Aortic Surgery: Long-term Survival and Functional Status Varies with Deficit Severity.
Date August 2008
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Five-year Results of Endovascular Treatment with the Gore Tag Device Compared with Open Repair of Thoracic Aortic Aneurysms.
Date June 2008
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Aortic Aneurysms.
Date May 2008
Journal Journal of the American College of Radiology : Jacr
Title International Controlled Clinical Trial of Thoracic Endovascular Aneurysm Repair with the Zenith Tx2 Endovascular Graft: 1-year Results.
Date March 2008
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Contemporary Management of Descending Thoracic and Thoracoabdominal Aortic Aneurysms: Endovascular Versus Open.
Date February 2008
Journal Circulation
Title Contemporary Management of Carotid Stenosis: Carotid Endarterectomy is Here to Stay.
Date January 2008
Journal Perspectives in Vascular Surgery and Endovascular Therapy
Excerpt Read excerpt

Title Long-term Durability of Open Abdominal Aortic Aneurysm Repair.
Date November 2007
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Commentary On: Mas Jl, Chatellier G, Beyssen B, Et Al. Endarterectomy Versus Stenting in Patients with Symptomatic Severe Carotid Stenosis. N Engl J Med. 2006;355:1660-1671.
Date November 2007
Journal Perspectives in Vascular Surgery and Endovascular Therapy
Excerpt Read excerpt

Title Defining the High-risk Patient for Carotid Endarterectomy: an Analysis of the Prospective National Surgical Quality Improvement Program Database.
Date October 2007
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Persistent Type 2 Endoleak After Endovascular Repair of Abdominal Aortic Aneurysm is Associated with Adverse Late Outcomes.
Date July 2007
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Restenosis After Eversion Vs Patch Closure Carotid Endarterectomy.
Date July 2007
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Surgical Revascularization Versus Endovascular Therapy for Chronic Mesenteric Ischemia: a Comparative Experience.
Date July 2007
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Comparison of Risk-adjusted 30-day Postoperative Mortality and Morbidity in Department of Veterans Affairs Hospitals and Selected University Medical Centers: Vascular Surgical Operations in Men.
Date July 2007
Journal Journal of the American College of Surgeons
Excerpt Read excerpt

Title Thoracoabdominal Aneurysm Repair: a 20-year Perspective.
Date March 2007
Journal The Annals of Thoracic Surgery
Excerpt Read excerpt

Title Stent-graft Versus Open-surgical Repair of the Thoracic Aorta: Mid-term Results.
Date January 2007
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Intermediate Results of Percutaneous Endovascular Therapy of Femoropopliteal Occlusive Disease: a Contemporary Series.
Date October 2006
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Long-term Outcomes After Endovascular Abdominal Aortic Aneurysm Repair: the First Decade.
Date October 2006
Journal Annals of Surgery
Excerpt Read excerpt

Title Poly Adenosine Diphosphate-ribose Polymerase Inhibitor Pj34 Abolishes Systemic Proinflammatory Responses to Thoracic Aortic Ischemia and Reperfusion.
Date August 2006
Journal Journal of the American College of Surgeons
Excerpt Read excerpt

Title Contemporary Results of Open Surgical Repair of Descending Thoracic Aortic Aneurysms.
Date August 2006
Journal Seminars in Vascular Surgery
Excerpt Read excerpt

Title Commentary on “extra-anatomic Visceral Revascularization and Endovascular Stent-grafting for Complex Thoracoabdominal Aortic Lesions”.
Date May 2006
Journal Perspectives in Vascular Surgery and Endovascular Therapy
Title Multi-institutional Pivotal Trial of the Zenith Tx2 Thoracic Aortic Stent-graft for Treatment of Descending Thoracic Aortic Aneurysms: Clinical Study Design.
Date May 2006
Journal Perspectives in Vascular Surgery and Endovascular Therapy
Excerpt Read excerpt

Title Aortic Dissection: Perspectives in the Era of Stent-graft Repair.
Date March 2006
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Title Current Results of Open Surgical Repair of Descending Thoracic Aortic Aneurysms.
Date March 2006
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Title Late Results of Combined Carotid and Coronary Surgery Using Actual Versus Actuarial Methodology.
Date December 2005
Journal The Annals of Thoracic Surgery
Excerpt Read excerpt

Title Contemporary Results of Angioplasty-based Infrainguinal Percutaneous Interventions.
Date November 2005
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Pj34, a Poly-adp-ribose Polymerase Inhibitor, Modulates Renal Injury After Thoracic Aortic Ischemia/reperfusion.
Date October 2005
Journal Surgery
Excerpt Read excerpt

Title Safety and Efficacy of Reoperative Carotid Endarterectomy: a 14-year Experience.
Date July 2005
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Determinants of Carotid Endarterectomy Anatomic Durability: Effects of Serum Lipids and Lipid-lowering Drugs.
Date May 2005
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Early Outcomes of Endovascular Versus Open Abdominal Aortic Aneurysm Repair in the National Surgical Quality Improvement Program-private Sector (nsqip-ps).
Date May 2005
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Thoracoabdominal Aneurysm Repair: Anesthetic Management.
Date March 2005
Journal International Anesthesiology Clinics
Title Endovascular Treatment of Thoracic Aortic Aneurysms: Results of the Phase Ii Multicenter Trial of the Gore Tag Thoracic Endoprosthesis.
Date March 2005
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Poly(adenosine Diphosphate Ribose) Polymerase Inhibition Modulates Spinal Cord Dysfunction After Thoracoabdominal Aortic Ischemia-reperfusion.
Date March 2005
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Current Status of Thoracoabdominal Aneurysm Repair.
Date November 2004
Journal Advances in Surgery
Title Stenting for Carotid-artery Stenosis.
Date October 2004
Journal The New England Journal of Medicine
Title Carotid Endarterectomy at the Millennium: What Interventional Therapy Must Match.
Date September 2004
Journal Annals of Surgery
Excerpt Read excerpt

Title Surgical Management of Popliteal Artery Embolism at the Turn of the Millennium.
Date June 2004
Journal Annals of Vascular Surgery
Excerpt Read excerpt

Title Regional Hypothermia with Epidural Cooling for Prevention of Spinal Cord Ischemic Complications After Thoracoabdominal Aortic Surgery.
Date April 2004
Journal Seminars in Thoracic and Cardiovascular Surgery
Excerpt Read excerpt

Title Preservation of Renal Function with Surgical Revascularization in Patients with Atherosclerotic Renovascular Disease.
Date February 2004
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Durability of Aortouniiliac Endografting with Femorofemoral Crossover: 4-year Experience in the Evt/guidant Trials.
Date June 2003
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Late Aortic and Graft-related Events After Thoracoabdominal Aneurysm Repair.
Date February 2003
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Surgical Treatment of Complicated Distal Aortic Dissection.
Date October 2002
Journal Seminars in Vascular Surgery
Excerpt Read excerpt

Title Thoracoabdominal Aneurysm Repair: Results with 337 Operations Performed over a 15-year Interval.
Date October 2002
Journal Annals of Surgery
Excerpt Read excerpt

Title Clinical Outcome of Internal Iliac Artery Occlusions During Endovascular Treatment of Aortoiliac Aneurysmal Diseases.
Date October 2002
Journal Journal of Vascular and Interventional Radiology : Jvir
Excerpt Read excerpt

Title Evolving Experience with Thoracic Aortic Stent Graft Repair.
Date July 2002
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Clinical Failures of Endovascular Abdominal Aortic Aneurysm Repair: Incidence, Causes, and Management.
Date July 2002
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Regarding “analysis of Predictive Factors for Progression of Type B Aortic Intramural Hematoma with Computed Tomography”.
Date July 2002
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Title Contemporary Management of Aortic Branch Compromise Resulting from Acute Aortic Dissection.
Date July 2001
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Endovascular Stent-graft in Abdominal Aortic Aneurysms: the Relationship Between Patent Vessels That Arise from the Aneurysmal Sac and Early Endoleak.
Date June 2001
Journal Radiology
Excerpt Read excerpt

Title Regional Hypothermia with Epidural Cooling for Spinal Cord Protection During Thoracoabdominal Aneurysm Repair.
Date April 2001
Journal Seminars in Vascular Surgery
Excerpt Read excerpt

Title Endovascular Repair of Abdominal Aortic Aneurysms: Current Status and Future Directions.
Date August 2000
Journal Ajr. American Journal of Roentgenology
Title Epidural Cooling for Spinal Cord Protection During Thoracoabdominal Aneurysm Repair: A Five-year Experience.
Date July 2000
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Utility and Reliability of Endovascular Aortouniiliac with Femorofemoral Crossover Graft for Aortoiliac Aneurysmal Disease.
Date July 2000
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

Title Surgical Renal Artery Reconstruction Without Contrast Arteriography: the Role of Clinical Profiling and Magnetic Resonance Angiography.
Date January 2000
Journal Journal of Vascular Surgery : Official Publication, the Society for Vascular Surgery [and] International Society for Cardiovascular Surgery, North American Chapter
Excerpt Read excerpt

http://www.vitals.com/doctors/Dr_Richard_Cambria/credentials
http://www.vitals.com/doctors/Dr_Richard_Cambria/credentials#ixzz2VqyhFZVd

Cambria RP, Brewster DC, Lauterbach SR, Kaufman JA, Geller SC, Fan CM, Greenfield A, Hilgenberg A, Clouse WD. Evolving experience with thoracic aortic stent-graft repair. J Vasc Surg 2002:35:1129-36.

Cambria, RP, Clouse WD, Davison JK, Dunn PF, Corey M, Dorer D. Thoracoabdominal aneurysm repair: Results with 337 operations performed over a 15 year interval. Ann Surg 2002;236-471-79.

Cambria RP, Lauterbach SR, Brewster DC, Gertler JP, LaMuraglia GM, Isselbacher EM, Hilgenberg AD, Moncure AC. Contemporary management of aortic branch compromise secondary to acute aortic dissections. J Vasc Surg 2001;331185-92.

Cambria RP and Black JH. Aortic dissection perspectives for the vascular/endovascular surgeon. In Rutherford (ed) Comprehensive Vascular and Endovascular Surgery 6 th , W. B. Saunders, Inc. (in press, 2004).

Cambria RP, Marone LK, Cloud WD, Dorer, DJ, Brewster, DC, LaMuraglia, GM, Watkins, MT, Kwolek, CJ. Preservation of renal functions with surgical revascularization in patients with atherosclerotic renovascular disease. J Vasc Surg 2004; 10.023.

Abdominal Aortic Aneurysm – Case Study

by

Angela Rodriguez-Wong, MD, RVT, RPVI

Lois Eliassi, BS, RVT

http://www.navixdiagnostix.com/downloads/Navix%20-%20Q1%20’13%20Ultrasound%20Solutions.pdf

An aneurysm is defined as a focally dilated segment of an artery that is 1.5 times its normal diameter and involves all three arterial walls (intima, media and adventitia). Aneurysms can be found in the common femoral and popliteal arteries in the lower extremities, the splenic, mesenteric, and renal arteries in the abdomen, and also in the intracranial vessels. However, the most common is an abdominal aortic aneurysm (AAA) involving the aorta and iliac arteries.

Abdominal aortic aneurysms are generally asymptomatic and are discovered accidentally either by physician palpation or by a radiologic examination such as a chest or abdominal X-ray. The risk factors that increase the probability of developing a AAA are primarily smoking and family history. An abdominal aortic aneurysm can rupture and, according to the Centers for Disease Control and Prevention, ruptured AAA was the 10th leading cause of death in males between the ages of 65-74 in the United States in 2000.

The preferred method of screening for AAA is diagnostic ultrasound. According to the Journal of Vascular Surgery, diagnostic ultrasound performed by a registered vascular technologist has a sensitivity of 100 percent and a specificity of 96 percent for the detection of an infrarenal AAA. The abdominal aorta is considered aneurysmal when it measures >3.0 cm.

Because of its accuracy, diagnostic ultrasound not only has become an integral part in diagnosing AAA but is also an integral part in the evaluation of disease progression, the preoperative AAA evaluation, and the follow-up of AAA surgical repair. It is important to note that a rupture of an AAA is a surgical emergency and is difficult to evaluate with ultrasound due to the inability to easily demonstrate abdominal free fluid. If a rupture is suspected, it is recommended that other imaging modalities such as CT be employed to better demonstrate the ruptured aneurysm and any intra-abdominal free fluid.

Case Study –

Abdominal Aortic Aneurysm – A 77 year-old male

Angela Rodriguez-Wong, MD, RVT, RPVI

Lois Eliassi, BS, RVT

Figure 1 Distal abdominal aortic aneurysm with mural thrombus.

pic1

Figure 2 Bifurcation of the aorta.

pic2

Case Study: A 77 year-old male with a past medical history of diabetes, hypertension, arthritis, aortic valve disease and heavy smoking was referred to Eastern Vascular Diagnostic Center with a 4.2 centimeter aneurysm. The patient denied any family history of aneurysm and is allergic to intravenous contrast. A physical exam found the patient alert with a blood pressure of 100/60 mmHg, a pulse of 58 and respiration of 16. Auscultation found a bruit in the left carotid artery, clear lungs, and a regular heart rhythm with an aortic systolic murmur. The patient had a well healed sub-costal incision on his abdomen. The physician was unable to palpate the aneurysms. The patient had an aortic valve replacement in 2007 and also a cholecystectomy. On May 12, 2012, a magnetic resonance imaging (MRI) scan without contrast was performed on the patient’s abdomen. The MRI found an AAA measuring greater than 3 cm with extensive plaque near the bifurcation. The aneurysm extended into the right common iliac artery (CIA) measuring 4.2 cm and into the left CIA measuring 3.1 cm. The MRI exam did not include the pelvis, so the extent of the iliac aneurysms was not clear. On July 31, 2012, the ultrasound was performed, demonstrating normal ankle brachial index (right-1.2, left-1.1) and a AAA measuring 3.9 cm which extended into the right and left CIA. The maximum diameter of the right CIA measures 4.1 cm with mural thrombus creating a residual lumen of 2.0 cm. The maximum diameter of the left CIA measures 4.3 cm, there is also mural thrombus noted but without significant appreciable diameter reduction within the vessel. A computed tomography (CT) scan of the abdomen and pelvis without contrast was performed on July 18th confirming the infrarenal AAA with extension into the iliac arteries bilaterally.

Surgery is recommended when an AAA reaches 5.0-5.5 cm in a male and 4.5-5.0 cm in females. Surgery, depending on the aneurysm, can be an open repair or an endovascular repair. In this patient, despite the size of the AAA being 4.1 cm, the disease also involved the bilateral common iliacs prompting the need for surgical intervention. The patient was cleared by cardiology and on July 31st had an AAA and bilateral Iliac aneurysm resection with a re-implantation of the inferior mesenteric artery and an Aorta to right Hypogastric bypass to maintain pelvic perfusion.

The U.S. Preventive Services Task Force has released a statement summarizing recommendations for screening for AAA. It states that screening benefits patients who have a relatively high risk for dying from an aneurysm; major risk factors are age 65 years or older, male sex, and smoking at least 100 cigarettes in a lifetime. The guideline recommends one-time screening with ultrasound for AAA in men 65 to 75 years of age who have ever smoked. No recommendation was made for or against screening in men 65 to 75 years of age who have never smoked, and it recommended against screening women. Men with a strong family history of AAA should be counseled about the risks and benefits of screening as they approach 65 years of age.

Angela Rodriguez-Wong, MD, RVT, RPVI

awong@navixdiagnostix.com

Lois Eliassi, BS, RVT

leliassi@navixdiagnostix.com

Figure 3 Sagittal image of the right common iliac artery demonstrating the measurement of the aneurysm and the true lumen.

pic3

Figure 4 Coronal view of the left common iliac artery.

pic4

REFERENCES

1. Anderson RN. Deaths: Leading causes for 2000. Natl Vital Stat Rep. 2002;50:1–85.

2. Kent KC, Zwolak RM, Jaff MR, et al. Screening for abdominal aortic aneurysm. J Vasc Surg. 2004;39:267–9.

3. Upchurch G Jr, Schaub T. Abdominal aortic aneurysm. American Family Physician. 2006;73(7), 1198-1204. http://www.aafp.org/afp/2006/0401/p1198.html

http://www.navixdiagnostix.com/downloads/Navix%20-%20Q1%20’13%20Ultrasound%20Solutions.pdf

Read Full Post »


Clinical Decision Support Systems for Management Decision Making of Cardiovascular Diseases

Author, and Content Consultant to e-SERIES A: Cardiovascular Diseases: Justin Pearlman, MD, PhD, FACC

and

Curator: Aviva Lev-Ari, PhD, RN

Clinical Decision Support Systems (CDSS)

Clinical decision support system (CDSS) is an interactive decision support system (DSS). It generally relies on computer software designed to assist physicians and other health professionals with decision-making tasks, such as when to apply a particular diagnosis, further specific tests or treatments. A functional definition proposed by Robert Hayward of the Centre for Health Evidence defines CDSS as follows:  “Clinical Decision Support systems link health observations with health knowledge to influence health choices by clinicians for improved health care”. CDSS is a major topic in artificial intelligence in medicine.

Vinod Khosla of A Khosla Ventures investment, in a Fortune Magazine article, “Technology will replace 80% of what doctors do”, on December 4, 2012, wrote about CDSS as a harbinger of science in medicine.

Computer-assisted decision support is in its infancy, but we have already begun to see meaningful impact on healthcare. Meaningful use of computer systems is now rewarded under the Affordable Care Act.  Studies have demonstrated the ability of computerized clinical decision support systems to lower diagnostic errors of omission significantly, by directly countering cognitive bias.  Isabel is a differential diagnosis tool and, according to a Stony Book study, matched the diagnoses of experienced clinicians in 74% of complex cases. The system improved to a 95% match after a more rigorous entry of patient data. The IBM supercomputer, Watson, after beating all humans at the intelligence-based task of playing Jeopardy, is now turning its attention to medical diagnosis. It can process natural language questions and is fast at parsing high volumes of medical information, reading and understanding 200 million pages of text in 3 seconds.

Examples of CDSS

  1. CADUCEUS
  2. DiagnosisPro
  3. Dxplain
  4. MYCIN
  5. RODIA

VIEW VIDEO

“When Should a Physician Deviate from the Diagnostic Decision Support Tool and What Are the Associated Risks?”

Introduction

Justin D. Pearlman, MD, PhD

A Decision Support System consists of one or more tools to help achieve good decisions. For example, decisions that can benefit from DSS include whether or not to undergo surgery, whether or not to undergo a stress test first, whether or not to have an annual mammogram starting at a particular age, or a computed tomography (CT) to screen for lung cancer, whether or not to utilize intensive care support such as a ventilator, chest shocks, chest compressions, forced feeding, strong antibiotics and so on versus care directed to comfort measures only without regard to longevity.

Any DSS can be viewed like a digestive tract, chewing on input, and producing output, and like the digestive tract, the output may only be valuable to a farmer. A well designed DSS is efficient in the input, timely in its processing and useful in the output. Mathematically, a DSS is a model with input parameters and an output variable or set of variables that can be used to determine an action. The input can be categorical (alive, dead), semi-quantitative (cold-warm-hot), or quantitative (temperature, systolic blood pressure, heart rate, oxygen saturation). The output can be binary (yes-no) or it can express probabilities or confidence intervals.

The process of defining specifications for a function and then deriving a useful function is called mathematical modeling. We will derive the function for “average” as an example. By way of specifications, we want to take a list of numbers as input, and come out with a single number that represents the middle of the pack or “central tendency.”   The order of the list should not matter, and if we change scales, the output should scale the same way. For example, if we use centimeters instead of inches, and we apply 2.54 centimeters to an inch, then the output should increase by the multiplier 2.54. If the list of numbers are all the same then the output should be the consistent value. Representing these specifications symbolically:

1. order doesn’t matter: f(a,b) = f(b,a), where “a” and “b” are input values, “f” is the function.

2. multipliers pass through (linearity):  f(ka,kb)=k f(a,b), where k is a scalar e.g. 2.54 cm/inch.

3. identity:  f(a,a,a,…) = a

Properties 1 and 2 lead us to consider linear functions consisting of sums and multipliers: f(a,b,c)=Aa+Bb+Cc …, where the capital letters are multipliers by “constants” – numbers that are independent of the list values a,b,c, and since the order should not matter, we simplify to f(a,b,c)=K (a+b+c+…) because a constant multiplier K makes order not matter. Property 3 forces us to pick K = 1/N where N is the length of the list. These properties lead us to the mathematical solution: average = sum of list of numbers divided by the length of the list.

A coin flip is a simple DSS: heads I do it, tails I don’t. The challenge of a good DSS is to perform better than random choice and also perform better (more accurately, more efficiently, more reliably, more timely and/or under more adverse conditions) than unassisted human decision making.

Therefore, I propose the following guiding principles for DSS design: choose inputs wisely (accessible, timely, efficient, relevant), determine to what you want output to be sensitive AND to what you want output to be insensitive, and be very clear about your measures of success.

For example, consider designing a DSS to determine whether a patient should receive the full range of support capabilities of an intensive care unit (ICU), or not. Politicians have cited the large bump in the cost of the last year of life as an opportunity to reduce costs of healthcare, and now pay primary care doctors to encourage patients to establish advanced directives not to use ICU services. From the DSS standpoint, the reasoning is flawed because the decision not to use ICU services should be sensitive to benefit as well as cost, commonly called cost-benefit analysis. If we measure success of ICU services by the benefit of quality life net gain (QLNG, “quailing”), measured in quality life-years (QuaLYs) and achieve 50% success with that, then the cost per QuaLY measures the cost-benefit of ICU services. In various cost-benefit decisions, the US Congress has decided to proceed if the cost is under $20-$100,000/QuaLY. If ICU services are achieving such a cost-benefit, then it is not logical to summarily block such services in advance. Rather, the ways to reduce those costs include improving the cost efficiency of ICU care, and improving the decision-making of who will benefit.

An example of a DSS is the prediction of plane failure from a thousand measurements of strain and function of various parts of an airplane. The desired output is probability of failure to complete the next flight safely. Cost-Benefit analysis then establishes what threshold or operating point merits grounding the plane for further inspection and preventative maintenance repairs. If a DSS reports probability of failure, then the decision (to ground the plane) needs to establish a threshold at which a certain probability triggers the decision to ground the plane.

The notion of an operating point brings up another important concept in decision support. At first blush, one might think the success of a DSS is determined by its ability to correctly identify a predicted outcome, such as futility of ICU care (when will the end result be no quality life net gain). The flaw in that measure of success is that it depends on prevalence in the study group. As an extreme example, if you study a group of patients with fatal gunshot wounds to the head, none will benefit and the DSS requirement is trivial and any DSS that says no for that group has performed well. At the other extreme, if all patients become healthy, the DSS requirement is also trivial, just say yes. Therefore the proper assessment of a DSS should pay attention to the prevalence and the operating point.

The impact of prevalence and operating point on decision-making is addressed by receiver-operator curves. Consider looking at the blood concentration of Troponin-I (TnI) as the sole determinant to decide who is having a heart attack.  If one plots a graph with horizontal axis troponin level and vertical axis ultimate proof of heart attack, the percentage of hits will generally be higher for higher values of TnI. To create such a graph, we compute a “truth table” which reports whether the test was above or below a decision threshold operating point, and whether or not the disease (heart attack) was in fact present:

TRUTH TABLE

              Disease            Not Disease
Test Positive

TP

FP

Test Negative

FN

TN

Total

TP+FN

FP+TN

The sensitivity to the disease is the true positive rate (TPR), the percentage of all disease cases that are ranked by the decision support as positive: TPR = TP/(TP+FN). 100% sensitivity can be achieved trivially by lowering the threshold for a positive test to zero, at a cost.  While sensitivity is necessary for success it is not sufficient. In addition to wanting sensitivity to disease, we want to avoid labeling non-disease as disease. That is often measured by specificity, the true negative rate (TNR), the percentage of those without disease who are correctly identified as not having disease: TNR = TN/(FP+TN). I propose also we define the complement to specificity, the anti-sensitivity, as the false positive rate (FPR), FPR = FP/(FP+TN) = 1 – TNR. Anti-sensitivity is a penalty cost of lowering the diagnostic threshold to boost sensitivity, as the concomitant rise in anti-sensitivity means a growing number of non-disease subjects are labeled as having disease. We want high sensitivity to true disease without high anti-sensitivity to false disease, and we want to be insensitive to common distractors. In these formulas, note that false negatives (FN) are True for disease, and false positives (FP) are False for disease, so the denominators add FN to TP for total True disease, and add FP to TN for total False for disease.

The graph in figure 1 justifies the definition of anti-sensitivity. It is an ROC or “Receiver-Operator Curve” which is a plot of sensitivity versus anti-sensitivity for different diagnostic thresholds of a test (operating points). Note, higher sensitivity comes at the cost of higher anti-sensitivity. Where to operate (what threshold to use for diagnosis) can be selected according to cost-benefit analysis of sensitivity versus anti-sensitivity (and specificity).

 untitled
FIgure 1 ROC (Receiver-Operator Curve): Graph of sensitivity (true positive rate) versus anti-sensitivity (false positive rate) computed by changing the operating point (threshold for declaring a test numeric value positive for disease). High area under the curve (AUC) is favorable because it means less anti-sensitivity for high sensitivity (upper left corner of shaded area more to the left, and higher). The dots on the curve are operating points. An inclusive operating point (high on the curve, high sensitivity) is used for screening tests, whereas an exclusive operating point (low on the curve, low anti-sensitivity) is used for definitive diagnosis.

Cost benefit analysis generally is based on a semi-lattice, or upside-down branching tree, which represents all choices and outcomes. It is important to include all branches down to final outcomes. For example, if the test is a mammogram to screen for breast cancer, the cost is not just the cost of the test, and the benefit “early diagnosis.” The cost-benefit calculation forces us to put a numerical value on the impact, such as a financial cost to an avoidable death, or we can get a numerical result in terms of quality life years expected. The cost, however, is not just the cost of the mammogram, but also of downstream events such as the cost of the needle biopsies for the suspicious “positives” and so on.

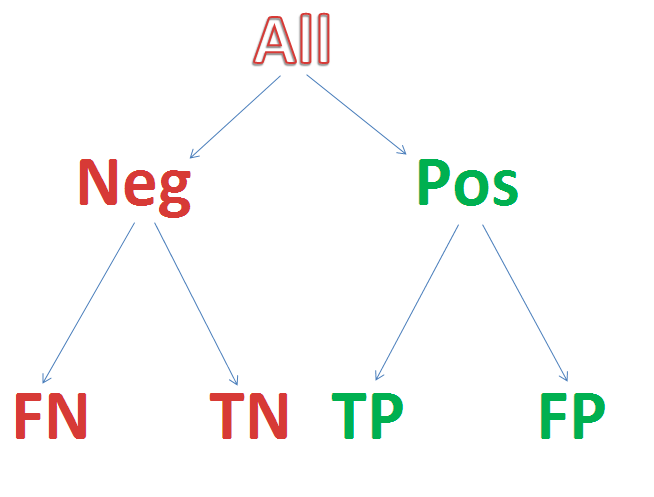

semilattice decision treeFigure 2 Semi-lattice Decision Tree: Starting from all patients, create a branch point for your test result, and add further branch points for any subsequent step-wise outcomes until you reach the “bottom line.” Assign a value to each, resulting in a numerical net cost and net benefit. If tests invoke risks (for example, needle biopsy of lung can collapse a lung and require hospitalization for a chest tube) then insert branch points for whether the complication occurs or not, as the treatment of a complication counts as part of the cost. The intermediary nodes can have probability of occurrence as their numeric factor, and the bottom line can apply the net probability of the path leading to a value as a multiplier to the dollar value (a 10% chance of costing $10,000 counts as an expectation cost of 0.1 x 10,000 = $1,000).

A third area of discussion is the statistical power of a DSS – how reliable is it in the application that you care about? Commonly DSS design is contrary to common statistical applications which address significance of a deviation in a small number of variables that have been measured many times in a large population. Instead, DSS often uses many variables to fully describe or characterize the status of a small population. For example, thousands of different measurements may be performed on a few dozen airplanes, aiming to predict when the plane should be grounded for repairs. A similar inversion of numbers – numerous variables, small number of cases – is common in genomics studies.

The success of a DDS is measured by its predictive value compared to outcomes or other measures of success. Thus measures of success include positive predictive value, negative predictive value, and confidence. A major problem with DDS is the inversion of the usually desired ratio of repetitions to measurement variables. When you get a single medical lab test, you have a single measurement value such as potassium level and a large number of normal subjects for comparison. If we knew the  mean μ and standard deviation σ that describes the distribution of normal values in the population at large, then we could compute the confidence in the decision to call our observed value abnormal based on the normal distribution:  , <br /><br /><br /><br /><br /><br /><br /><br /><br />
f(x) = \frac{1}{\sigma\sqrt{2\pi}} e^{ -\frac{(x-\mu)^2}{2\sigma^2} }.<br /><br /><br /><br /><br /><br /><br /><br /><br />

A value may be deemed distinctive based on a 95% confidence interval if it falls outside of the norm, say by more than twice the standard deviation σ, thereby establishing that it is unlikely to be random as the distance from the mean excludes 95% of the normal distribution.

The determination of confidence in an observed set of results stems from maximized likelihood estimates. Earlier in this article we described how to derive the the mean, or center, of a set of measurements. A similar analysis can derive the standard deviation (square root of variance) as a measure of spread around the mean, as well as other descriptive statistics based on sample values. These formulas describe the distribution of sample values about the mean. The calculation is based on a simple inversion. If we knew the mean and variance of a population of values for a measurement, we could calculate the likelihood of each new measurement falling a particular distance from the mean, and we could calculate the combined likelihood for a set of observed values. Maximized Likelihood Estimation (MLE) simply inverts the method of calculation. Instead of treating the mean and variance as known, we can treat the sample observations as the known data, to characterize a distribution for the observed data samples from an estimate of the spread about an unknown mean from a set of N normal samples x(one can apply calculus to compute the formulas below for the unknown mean and unknown variance, based simply on computing how to maximize the joint likelihood of the observations  xfrom the frequency distribution above, in order t0 derive the following formulas):

\sigma = \sqrt{\frac{1}{N}\left[(x_1-\mu)^2 + (x_2-\mu)^2 + \cdots + (x_N - \mu)^2\right]}, {\rm \ \ where\ \ } \mu = \frac{1}{N} (x_1 + \cdots + x_N),

The frequency distribution (a function of mean and spread) reports the frequency of observing x if it is drawn from a population with the specified mean μ and standard deviation σ . We can invert that by treating the observations, x, as known and the mean μ and standard deviation σ unknown, then calculate the values μ and  σ that maximize the likelihood of our sample set as coming from the dynamically described population.

In DSS there is typically an inversion of the usually requisite large number of samples (small versus large) and number of variables (large versus small. This inversion has major consequences on data confidence. If you measure just 14 independent variables versus one variable, each at 95% confidence, the net confidence drops exponentially to less than 50%: 0.9514=49%. In the airplane grounding screen tests, 1000 independent variables, at 95% confidence each, yields a net confidence of only 5 x 10-23 which is 10 sextillion times less than 50% confidence. This same problem arises in genomics research, in which we have a large array of gene product measurements on a small number of patients. Standard statistical tools are problematic at high variable counts. One can turn to qualitative grouping tools such as exploratory factor analysis, or recover statistical robustness with HykGene, a combined cluster and ranking method devised by the author to improve dramatically the ability to identify distinctions with confidence when the number of variables is high.

Evolution of DSS

Aviva Lev-Ari, PhD, RN

The examples provided above refer to sets of binary models, one family of DSS. Another type of DSS is multivariate in nature, a corollary of multivariate scenarios constitute alternative choice options. Last decade development in the DSS field involved the design of Recommendation Engines given manifested preference functions that involved simultaneous trade-off functions against cost function. Game theoretical context is embedded into Recommendation Engines. The output mentioned above, is in fact an array of options with probabilities of saving reward assigned by the Recommendation Engine.

Underlining Computation Engines

Methodological Basis of Clinical DSS

There are many different methodologies that can be used by a CDSS in order to provide support to the health care professional.[7]

The basic components of a CDSS include a dynamic (medical) knowledge base and an inference mechanism (usually a set of rules derived from the experts and evidence-based medicine) and implemented through medical logic modules based on a language such as Arden syntax. It could be based on Expert systems or artificial neural networks or both (connectionist expert systems).

Bayesian Network

The Bayesian network is a knowledge-based graphical representation that shows a set of variables and their probabilistic relationships between diseases and symptoms. They are based on conditional probabilities, the probability of an event given the occurrence of another event, such as the interpretation of diagnostic tests. Bayes’ rule helps us compute the probability of an event with the help of some more readily available information and it consistently processes options as new evidence is presented. In the context of CDSS, the Bayesian network can be used to compute the probabilities of the presence of the possible diseases given their symptoms.

Some of the advantages of Bayesian Network include the knowledge and conclusions of experts in the form of probabilities, assistance in decision making as new information is available and are based on unbiased probabilities that are applicable to many models.

Some of the disadvantages of Bayesian Network include the difficulty to get the probability knowledge for possible diagnosis and not being practical for large complex systems given multiple symptoms. The Bayesian calculations on multiple simultaneous symptoms could be overwhelming for users.

Example of a Bayesian network in the CDSS context is the Iliad system which makes use of Bayesian reasoning to calculate posterior probabilities of possible diagnoses depending on the symptoms provided. The system now covers about 1500 diagnoses based on thousands of findings.

Another example is the DXplain system that uses a modified form of the Bayesian logic. This CDSS produces a list of ranked diagnoses associated with the symptoms.

A third example is SimulConsult, which began in the area of neurogenetics. By the end of 2010 it covered ~2,600 diseases in neurology and genetics, or roughly 25% of known diagnoses. It addresses the core issue of Bayesian systems, that of a scalable way to input data and calculate probabilities, by focusing specialty by specialty and achieving completeness. Such completeness allows the system to calculate the relative probabilities, rather than the person inputting the data. Using the peer-reviewed medical literature as its source, and applying two levels of peer-review to the data entries, SimulConsult can add a disease with less than a total of four hours of clinician time. It is widely used by pediatric neurologists today in the US and in 85 countries around the world.

Neural Network

Artificial Neural Networks (ANN) is a nonknowledge-based adaptive CDSS that uses a form of artificial intelligence, also known as machine learning, that allows the systems to learn from past experiences / examples and recognizes patterns in clinical information. It consists of nodes called neuron and weighted connections that transmit signals between the neurons in a forward or looped fashion. An ANN consists of 3 main layers: Input (data receiver or findings), Output (communicates results or possible diseases) and Hidden (processes data). The system becomes more efficient with known results for large amounts of data.

The advantages of ANN include the elimination of needing to program the systems and providing input from experts. The ANN CDSS can process incomplete data by making educated guesses about missing data and improves with every use due to its adaptive system learning. Additionally, ANN systems do not require large databases to store outcome data with its associated probabilities. Some of the disadvantages are that the training process may be time consuming leading users to not make use of the systems effectively. The ANN systems derive their own formulas for weighting and combining data based on the statistical recognition patterns over time which may be difficult to interpret and doubt the system’s reliability.

Examples include the diagnosis of appendicitis, back pain, myocardial infarction, psychiatric emergencies and skin disorders. The ANN’s diagnostic predictions of pulmonary embolisms were in some cases even better than physician’s predictions. Additionally, ANN based applications have been useful in the analysis of ECG (A.K.A. EKG) waveforms.

Genetic Algorithms

Genetic Algorithm (GA) is a nonknowledge-based method developed in the 1940s at the Massachusetts Institute of Technology based on Darwin’s evolutionary theories that dealt with the survival of the fittest. These algorithms rearrange to form different re-combinations that are better than the previous solutions. Similar to neural networks, the genetic algorithms derive their information from patient data.

An advantage of genetic algorithms is these systems go through an iterative process to produce an optimal solution. The fitness function determines the good solutions and the solutions that can be eliminated. A disadvantage is the lack of transparency in the reasoning involved for the decision support systems making it undesirable for physicians. The main challenge in using genetic algorithms is in defining the fitness criteria. In order to use a genetic algorithm, there must be many components such as multiple drugs, symptoms, treatment therapy and so on available in order to solve a problem. Genetic algorithms have proved to be useful in the diagnosis of female urinary incontinence.

Rule-Based System

A rule-based expert system attempts to capture knowledge of domain experts into expressions that can be evaluated known as rules; an example rule might read, “If the patient has high blood pressure, he or she is at risk for a stroke.” Once enough of these rules have been compiled into a rule base, the current working knowledge will be evaluated against the rule base by chaining rules together until a conclusion is reached. Some of the advantages of a rule-based expert system are the fact that it makes it easy to store a large amount of information, and coming up with the rules will help to clarify the logic used in the decision-making process. However, it can be difficult for an expert to transfer their knowledge into distinct rules, and many rules can be required for a system to be effective.

Rule-based systems can aid physicians in many different areas, including diagnosis and treatment. An example of a rule-based expert system in the clinical setting is MYCIN. Developed at Stanford University by Edward Shortliffe in the 1970s, MYCIN was based on around 600 rules and was used to help identify the type of bacteria causing an infection. While useful, MYCIN can help to demonstrate the magnitude of these types of systems by comparing the size of the rule base (600) to the narrow scope of the problem space.

The Stanford AI group subsequently developed ONCOCIN, another rules-based expert system coded in Lisp in the early 1980s.[8] The system was intended to reduce the number of clinical trial protocol violations, and reduce the time required to make decisions about the timing and dosing of chemotherapy in late phase clinical trials. As with MYCIN, the domain of medical knowledge addressed by ONCOCIN was limited in scope and consisted of a series of eligibility criteria, laboratory values, and diagnostic testing and chemotherapy treatment protocols that could be translated into unambiguous rules. Oncocin was put into production in the Stanford Oncology Clinic.

Logical Condition

The methodology behind logical condition is fairly simplistic; given a variable and a bound, check to see if the variable is within or outside of the bounds and take action based on the result. An example statement might be “Is the patient’s heart rate less than 50 BPM?” It is possible to link multiple statements together to form more complex conditions. Technology such as a decision table can be used to provide an easy to analyze representation of these statements.

In the clinical setting, logical conditions are primarily used to provide alerts and reminders to individuals across the care domain. For example, an alert may warn an anesthesiologist that their patient’s heart rate is too low; a reminder could tell a nurse to isolate a patient based on their health condition; finally, another reminder could tell a doctor to make sure he discusses smoking cessation with his patient. Alerts and reminders have been shown to help increase physician compliance with many different guidelines; however, the risk exists that creating too many alerts and reminders could overwhelm doctors, nurses, and other staff and cause them to ignore the alerts altogether.

Causal Probabilistic Network

The primary basis behind the causal network methodology is cause and effect. In a clinical causal probabilistic network, nodes are used to represent items such as symptoms, patient states or disease categories. Connections between nodes indicate a cause and effect relationship. A system based on this logic will attempt to trace a path from symptom nodes all the way to disease classification nodes, using probability to determine which path is the best fit. Some of the advantages of this approach are the fact that it helps to model the progression of a disease over time and the interaction between diseases; however, it is not always the case that medical knowledge knows exactly what causes certain symptoms, and it can be difficult to choose what level of detail to build the model to.

The first clinical decision support system to use a causal probabilistic network was CASNET, used to assist in the diagnosis of glaucoma. CASNET featured a hierarchical representation of knowledge, splitting all of its nodes into one of three separate tiers: symptoms, states and diseases.

  1. a b c d e “Decision support systems .” 26 July 2005. 17 Feb. 2009 <http://www.openclinical.org/dss.html>.
  2. 2^ a b c d e f g Berner, Eta S., ed. Clinical Decision Support Systems. New York, NY: Springer, 2007.
  3. 3^ Khosla, Vinod (December 4, 2012). “Technology will replace 80% of what doctors do”. Retrieved April 25, 2013.
  4. ^ Garg AX, Adhikari NK, McDonald H, Rosas-Arellano MP, Devereaux PJ, Beyene J et al. (2005). “Effects of computerized clinical decision support systems on practitioner performance and patient outcomes: a systematic review.”JAMA 293 (10): 1223–38. doi:10.1001/jama.293.10.1223PMID 15755945.
  5. ^ Kensaku Kawamoto, Caitlin A Houlihan, E Andrew Balas, David F Lobach. (2005). “Improving clinical practice using clinical decision support systems: a systematic review of trials to identify features critical to success.”BMJ 330 (7494): 765. doi:10.1136/bmj.38398.500764.8FPMC 555881PMID 15767266.
  6. ^ Gluud C, Nikolova D (2007). “Likely country of origin in publications on randomised controlled trials and controlled clinical trials during the last 60 years.”Trials 8: 7. doi:10.1186/1745-6215-8-7PMC 1808475PMID 17326823.
  7. ^ Wagholikar, K. “Modeling Paradigms for Medical Diagnostic Decision Support: A Survey and Future Directions”. Journal of Medical Systems. Retrieved 2012.
  8. ^ ONCOCIN: An expert system for oncology protocol management E. H. Shortliffe, A. C. Scott, M. B. Bischoff, A. B. Campbell, W. V. Melle, C. D. Jacobs Seventh International Joint Conference on Artificial Intelligence, Vancouver, B.C.. Published in 1981

SOURCE for Computation Engines Section and REFERENCES:

http://en.wikipedia.org/wiki/Clinical_decision_support_system

Cardiovascular Diseases: Decision Support Systems (DSS) for Disease Management Decision Making – DSS analyzes information from hospital cardiovascular patients in real time and compares it with a database of thousands of previous cases to predict the most likely outcome.

Can aviation technology reduce heart surgery complications?

Algorithm for real-time analysis of data holds promise for forecasting
August 13, 2012 | By

British researchers are working to adapt technology from the aviation industry to help prevent complications among heart patients after surgery. Up to 1,000 sensors aboard aircraft help airlines determine when a plane requires maintenance, reports The Engineer, serving as a model for the British risk-prediction system.

The system analyzes information from hospital cardiovascular patients in real time and compares it with a database of thousands of previous cases to predict the most likely outcome.

“There are vast amounts of clinical data currently collected which is not analyzed in any meaningful way. This tool has the potential to identify subtle early signs of complications from real-time data,” Stuart Grant, a research fellow in surgery at University Hospital of South Manchester, says in a hospital statement. Grant is part of the Academic Surgery Unit working with Lancaster University on the project, which is still its early stages.

The software predicts the patient’s condition over a 24-hour period using four metrics: systolic blood pressure, heart rate, respiration rate and peripheral oxygen saturationexplains EE Times.

As a comparison tool, the researchers obtained a database of 30,000 patient records from the Massachusetts Institute of Technology and combined it with a smaller, more specialized database from Manchester.

In six months of testing, its accuracy is about 75 percent, The Engineer reports. More data and an improved algorithm could boost that rate to 85 percent, the researchers believe. Making the software web-based would allow physicians to access the data anywhere, even on tablets or phones, and could enable remote consultation with specialists.

In their next step, the researchers are applying for more funding and for ethical clearance for a large-scale trial.

U.S. researchers are working on a similar crystal ball, but one covering an array of conditions. Researchers from the University of Washington, MIT and Columbia University are using a statistical model that can predict future ailments based on a patient’s history–and that of thousands of others.

And the U.S. Department of Health & Human Services is using mathematical modeling to analyze effects of specific healthcare interventions.

Predictive modeling also holds promise to make clinical research easier by using algorithms examine multiple scenarios based on different kinds of patient populations, specified health conditions and various treatment regimens

To learn more:
– here’s the Engineer article
– check out the hospital report
– read the EE Times article

Related Articles:
Algorithm looks to past to predict future health conditions
HHS moves to mathematical modeling for research, intervention evaluation
Decision support, predictive modeling may speed clinical research

SOURCE:

Can aviation technology reduce heart surgery complications? – FierceHealthIT http://www.fiercehealthit.com/story/can-aviation-technology-reduce-heart-surgery-complications/2012-08-13#ixzz2SITHc61J

http://www.fiercehealthit.com/story/study-decision-support-systems-must-be-flexible-adaptable-transparent/2012-08-20

Medical Decision Making Tools: Overview of DSS available to date

http://www.openclinical.org/dss.html

Clinical Decision Support Systems – used for Cardiovascular Medical Decisions

Stud Health Technol Inform. 2010;160(Pt 2):846-50.

AALIM: a cardiac clinical decision support system powered by advanced multi-modal analytics.

Amir A, Beymer D, Grace J, Greenspan H, Gruhl D, Hobbs A, Pohl K, Syeda-Mahmood T, Terdiman J, Wang F.

Source

IBM Almaden Research Center, San Jose, CA, USA.

Abstract

Modern Electronic Medical Record (EMR) systems often integrate large amounts of data from multiple disparate sources. To do so, EMR systems must align the data to create consistency between these sources. The data should also be presented in a manner that allows a clinician to quickly understand the complete condition and history of a patient’s health. We develop the AALIM system to address these issues using advanced multimodal analytics. First, it extracts and computes multiple features and cues from the patient records and medical tests. This additional metadata facilitates more accurate alignment of the various modalities, enables consistency check and empowers a clear, concise presentation of the patient’s complete health information. The system further provides a multimodal search for similar cases within the EMR system, and derives related conditions and drugs information from them. We applied our approach to cardiac data from a major medical care organization and found that it produced results with sufficient quality to assist the clinician making appropriate clinical decisions.

PMID: 20841805 [PubMed – indexed for MEDLINE]

DSS development for Enhancement of Heart Drug Compliance by Cardiac Patients

A good example of a thorough and effective CDSS development process is an electronic checklist developed by Riggio et al. at Thomas Jefferson University Hospital (TJUH) [12]. TJUH had a computerized physician order-entry system in place. To meet congestive heart failure and acute myocardial infarction quality measures (e.g., use of aspirin, beta blockers, and angiotensin-converting enzyme (ACE) inhibitors), a multidisciplinary team including a focus group of residents developed a checklist, embedded in the computerized discharge instructions, that required resident physicians to prescribe the recommended medications or choose from a drop-down list of contraindications. The checklist was vetted by several committees, including the medical executive committee, and presented at resident conferences for feedback and suggestions. Implementation resulted in a dramatic improvement in compliance.

http://virtualmentor.ama-assn.org/2011/03/medu1-1103.html

Early DSS Development at Stanford Medical Center in the 70s

MYCIN (1976)     MYCIN was a rule-based expert system designed to diagnose and recommend treatment for certain blood infections (antimicrobial selection for patients with bacteremia or meningitis). It was later extended to handle other infectious diseases. Clinical knowledge in MYCIN is represented as a set of IF-THEN rules with certainty factors attached to diagnoses. It was a goal-directed system, using a basic backward chaining reasoning strategy (resulting in exhaustive depth-first search of the rules base for relevant rules though with additional heuristic support to control the search for a proposed solution). MYCIN was developed in the mid-1970s by Ted Shortliffe and colleagues at Stanford University. It is probably the most famous early expert system, described by Mark Musen as being “the first convincing demonstration of the power of the rule-based approach in the development of robust clinical decision-support systems” [Musen, 1999].

The EMYCIN (Essential MYCIN) expert system shell, employing MYCIN’s control structures was developed at Stanford in 1980. This domain-independent framework was used to build diagnostic rule-based expert systems such as PUFF, a system designed to interpret pulmonary function tests for patients with lung disease.

http://www.bmj.com/content/346/bmj.f657

ECG for Detection of MI: DSS use in Cardiovascualr Disease Management

http://faculty.ksu.edu.sa/AlBarrak/Documents/Clinical%20Decision%20Support%20Systems_Ch01.pdf

also showed that neural networks did a better job than two experienced cardiologists in detecting acute myocardial infarction in electrocardiograms with concomitant left bundle branch block.

Olsson SE, Ohlsson M, Ohlin H, Edenbrandt L. Neural networks—a diagnostic tool in acute myocardial infarction with concomitant left bundle branch block. Clin Physiol Funct Imaging 2002;22:295–299.

Sven-Erik Olsson, Hans Öhlin, Mattias Ohlsson and Lars Edenbrandt
Neural networks – a diagnostic tool in acute myocardial infarction with concomitant left bundle branch block
Clinical Physiology and Functional Imaging 22, 295-299 (2002)

Abstract
The prognosis of acute myocardial infarction (AMI) improves by early revascularization. However the presence of left bundle branch block (LBBB) in the electrocardiogram (ECG) increases the difficulty in recognizing an AMI and different ECG criteria for the diagnosis of AMI have proved to be of limited value. The purpose of this study was to detect AMI in ECGs with LBBB using artificial neural networks and to compare the performance of the networks to that of six sets of conventional ECG criteria and two experienced cardiologists. A total of 518 ECGs, recorded at an emergency department, with a QRS duration > 120 ms and an LBBB configuration, were selected from the clinical ECG database. Of this sample 120 ECGs were recorded on patients with AMI, the remaining 398 ECGs being used as a control group. Artificial neural networks of feed-forward type were trained to classify the ECGs as AMI or not AMI. The neural network showed higher sensitivities than both the cardiologists and the criteria when compared at the same levels of specificity. The sensitivity of the neural network was 12% (P = 0.02) and 19% (P = 0.001) higher than that of the cardiologists. Artificial neural networks can be trained to detect AMI in ECGs with concomitant LBBB more effectively than conventional ECG criteria or experienced cardiologists.

http://home.thep.lu.se/~mattias/publications/papers/lu_tp_00_38_abs.html

Additional SOURCES:

http://www.implementationscience.com/content/6/1/92

http://www.fiercehealthit.com/story/study-decision-support-systems-must-be-flexible-adaptable-transparent/2012-08-20

 Comment of Note

During 1979-1983 Dr. Aviva Lev-Ari was part of Prof. Ronald A. Howard, Stanford University, Study Team, the consulting group to Stanford Medical Center during MYCIN feature enhancement development.

Professor Howard is one of the founders of the decision analysis discipline. His books on probabilistic modeling, decision analysis, dynamic programming, and Markov processes serve as major references for courses and research in these fields.

https://engineering.stanford.edu/profile/rhoward

It was Prof. Howard from EES, Prof. Amos Tversky of Behavior Science  (Advisor of Dr. Lev-Ari’s Masters Thesis at HUJ), and Prof. Kenneth Arrow, Economics, with 15 doctoral students in the early 80s, that formed the Interdisciplinary Decision Analysis Core Group at Stanford. Students of Prof. Howard, chiefly, James E. Matheson, started the Decision Analysis Practice at Stanford Research Institute (SRI, Int’l) in Menlo Park, CA.

http://www.sri.com/

Dr. Lev-Ari  was hired on 3/1985 to head SRI’s effort in algorithm-based DSS development. The models she developed were applied in problem solving for  SRI Clients, among them Pharmaceutical Manufacturers: Ciba Geigy, now NOVARTIS, DuPont, FMC, Rhone-Poulenc, now Sanofi-Aventis.

Read Full Post »
